Brick Tile Cladding
Brick Tile Rainscreen

The Occam Brick Cladding Tile system exceeds traditional limitations, offering refined design flexibility.

The Occam Brick Tile cladding system is an A1 non-combustible, mechanically fixed rainscreen system that accommodates a range of clay tiles, which can be digitally engraved to transform traditional clay bricks into stunning, fully customisable designs.

  • Occam holds UL third-party product certification.
  • Available in standard, projecting, soffit & corner brick types.
  • Tiles available in a wide range of finishes.
  • Classified in accordance with EN13501-1, achieving A1.
  • Fully tested and compliant with CWCT standards.
  • Hygrothermal and freeze-thaw tested to EAD-090062-01-0404.
DownloadsDownloadsDownloads ContactMake an Enquiry Make an Enquiry

Occam Brick Tile is a rainscreen cladding system that combines precision engineering with sustainable performance.

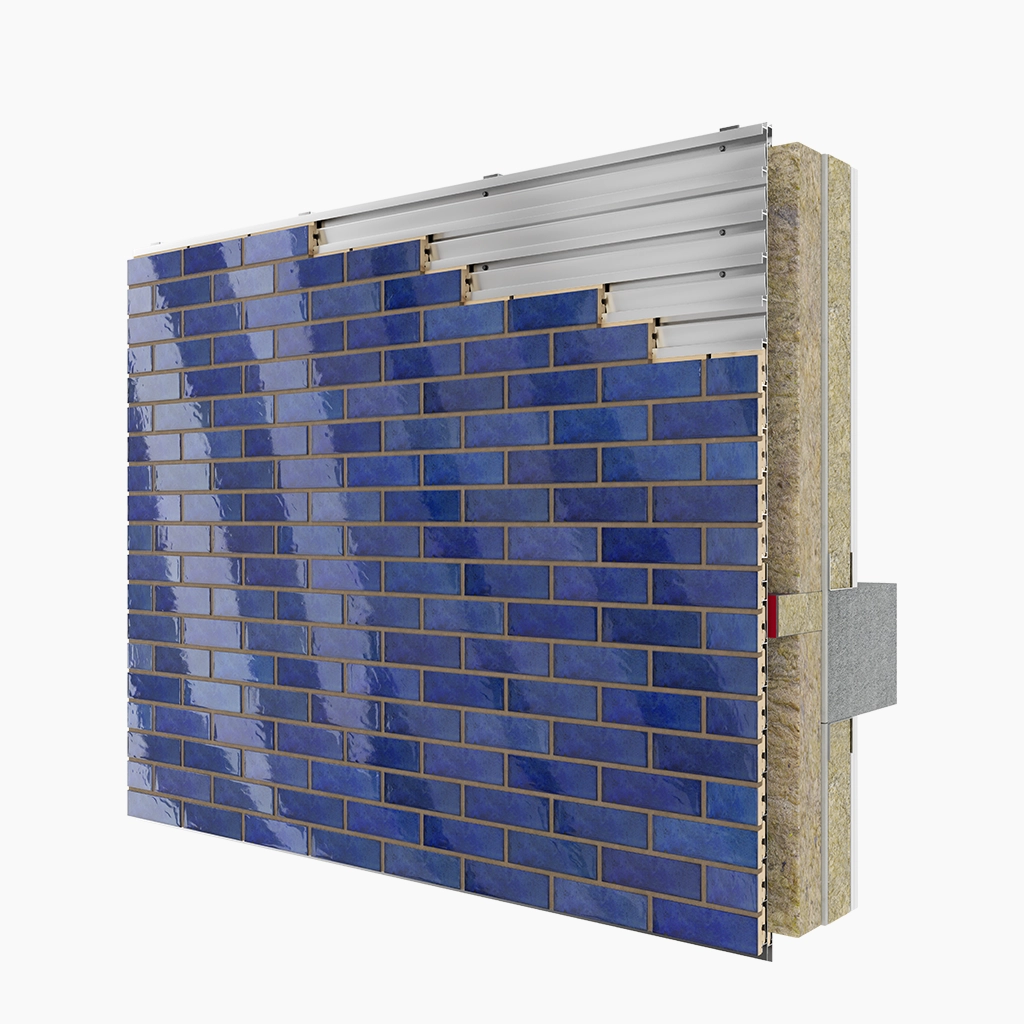

Brick tiles are mechanically fixed into extruded aluminium carriers, which can be installed vertically or horizontally. These carriers are mounted on an aluminium support frame, creating a ventilated cavity that improves thermal performance, allows for thicker insulation, and simplifies installation. The system uses cement-free hydrated lime mortar for pointing, reducing environmental impact while maintaining a traditional finish. Individual tiles can be replaced if needed, and a variety of bond patterns and pointing styles are available.

Sustainability is central to the design. The lightweight system reduces structural load and embodied carbon. Fewer components speed up installation and support offsite construction, while optimised material use helps minimise waste. Both the aluminium and clay tiles are recyclable or repurposable, offering a durable, low-maintenance façade solution that meets modern environmental standards.

The System

The Occam Brick cladding system holds UL Mark product certification, a scheme recognised by the NHBC and other leading warranty providers.

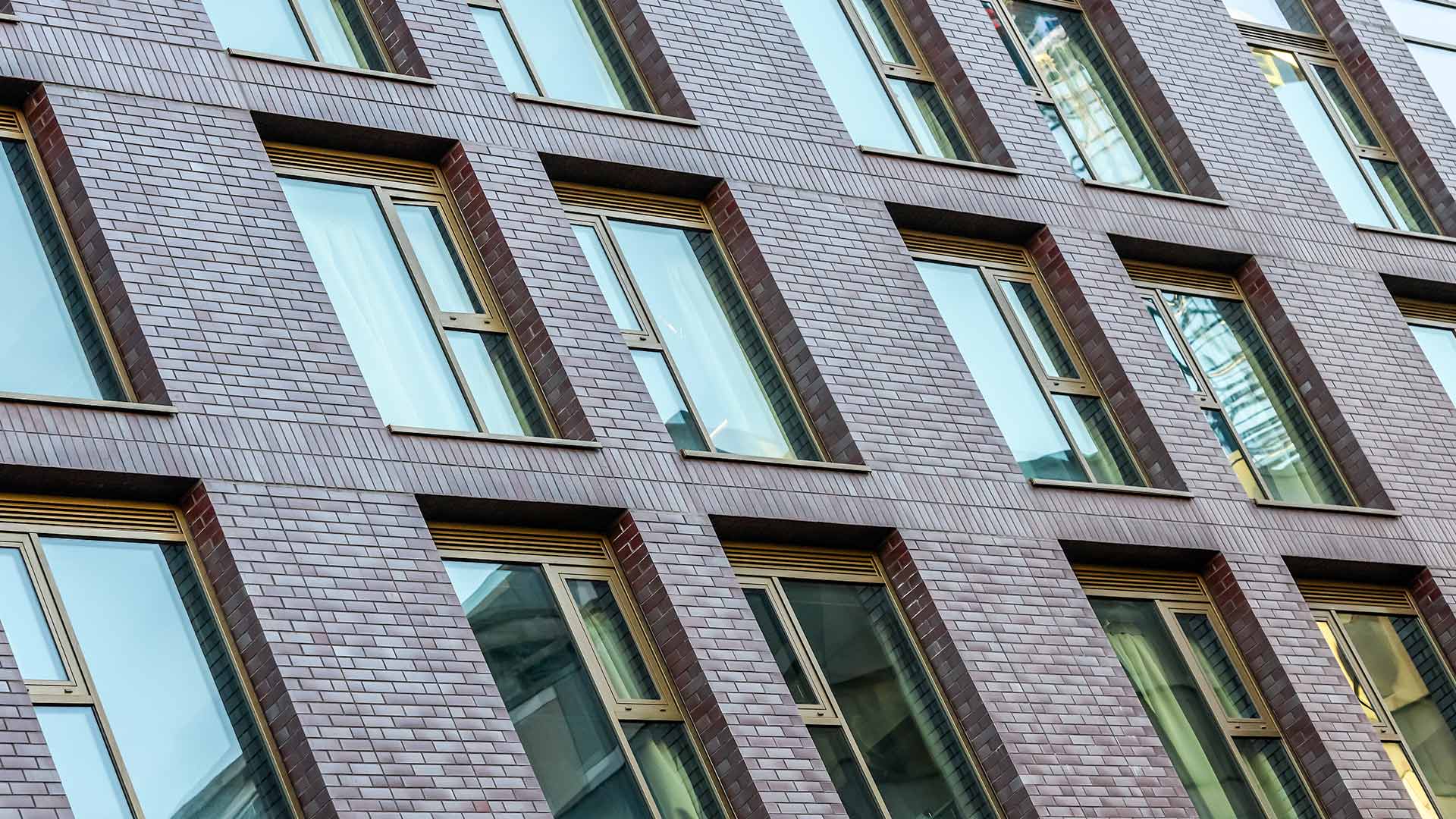

Brick Rainscreen System on a high rise building
Brick Cladding on an apartment building

Materials & Finishes

The Occam Brick Tile rainscreen system is available in an almost limitless range of colours, covering the entire RAL spectrum.

Clay Tiles

Brick tiles offer a natural, textured finish in various tones, suited to both traditional and contemporary designs.

Glazed Bricks

Glazed tiles feature a smooth, coloured finish that adds depth, durability, and visual interest to building façades.

Metallic Glazed Bricks

Metallic glazed tiles have a reflective, shimmering surface that creates bold visual effects and a contemporary feel.

Pointing Mortar

Occam offers a range of pointing mortars, including Instarmac Limepoint PF.

Filters
Black Painted Steel

Black
(LG)

Sargasso Painted Steel

Sargasso
(LG)

Terracotta Painted Steel

Terracotta
(LG)

Olive Green Painted Steel

Olive Green
(LG)

Anthracite Painted Steel

Amthracite
(LG)

Oceon Blue

Oceon Blue
(LG)

Mushroom

Mushroom
(LG)

Heritage Green

Heritage Green
(LG)

Raven

Raven
(LG)

Moorland Green

Moorland Green
(LG)

Merlin Grey

Merlin Grey
(LG)

Albatross

Albatross
(LG)

Load MoreLoad More

Learn More

Explore the Occam cladding system in detail to gain a comprehensive understanding of its design and performance.

  • UL Accreditation

    UL (Underwriters Laboratories) is a globally recognised, UKAS-accredited organisation that provides certification, testing, and auditing services across various industries, including the building envelope sector.

    The Occam system has been independently evaluated by UL and meets the requirements of the UL Mark ‘Performance of Curtain Walling and Cladding and Rainscreen Cladding Support Systems’ certification scheme.

    The UL Mark is listed by the NHBC as an accepted product certification scheme alongside the BBA (British Board of Agrément) and Kiwa in NHBC Technical Guidance 2.1/01.

  • Occam Water Test

    CWCT Testing

    The system has been successfully tested to CWCT standards. This includes air permeability, water penetration, wind resistance (both serviceability and safety), and soft- and hard-body impact resistance.

    Fire Performance

    The system is classified under EN 13501-1, meeting the required construction product standards for fire performance. Testing was carried out by Warringtonfire, part of the Element Group. The classification is based on results from the Single Burning Item (SBI) test (EN 13823), combined with calorific value data from EN 1716 or EN 1182, depending on the material.

    Hygrothermal and Freeze–Thaw Testing

    The system has been tested to assess its durability against cycles of heat, moisture, freezing, and thawing. These tests simulate real-world weather conditions to ensure long-term performance. Accelerated ageing protocols, consistent with ETICS evaluation procedures, are used to predict service life.

  • Occam Installation

    Get installation right with hands-on training at our UK Learning Zone, where contractors can build confidence and sharpen their practical skills. In addition to in-person sessions, we provide clear, easy-to-follow installation videos and technical guides, ensuring support is always available, whether you’re on site or planning ahead.

    To request installation guides or book a training session, please contact us.

    ContactContact UsContact Us
  • NBS Source

    Occam Clay Tile is listed on NBS Source, streamlining specification for architects, contractors, and consultants. With access to comprehensive product data, BIM files, and specification clauses, the system is ready for seamless integration into detailed design packages. This supports a smooth transition from concept to construction, ensuring accurate specification and compliance at every project stage.

    Learn MoreLearn More

Brick Types & Components

Occam’s robust and reliable system components deliver exceptional performance.

  • Occam Ancillary Components

    The Occam support system is designed to deliver excellent performance. Its slim façade creates extra cavity space, allowing for thicker insulation and better thermal efficiency. With minimal, lightweight components, the system simplifies logistics and reduces the need for frequent on-site deliveries.

    To further improve thermal performance, stainless steel helping hand brackets and thermal isolator pads minimise thermal bridging, which can reduce the required insulation thickness. This approach results in an efficient, practical cladding solution.

    The Occam Brick Tile support system includes:

    • Isolator Pads (available in 80 mm, 120 mm, and 160 mm sizes)
    • Helping Hand Brackets (available in 80 mm, 120 mm, and 160 mm sizes)
    • L and T Rails



  • Occam Carrier Components

    The Occam Brick Tile system provides several carrier options to suit different project details. Each carrier fits closely to the next, forming a continuous, flat surface that integrates smoothly with cavity barriers.

    Carrier types include:

    • Occam Starter Carrier
    • Occam Single Carrier
    • Occam Triple Course Carrier
    • Occam Brick Tile Termination Carrier
    • Occam Brick Tile Soffit Carrier

    The Triple Course Carrier is designed to enhance installation efficiency by allowing three brick courses to be installed per carrier.

  • Occam Brick Tiles

    In partnership with leading manufacturers, we offer a wide range of brick finishes and profiles compatible with the Occam Brick Slip system.

    Available brick profiles include:

    • Standard Brick Tile
    • Projecting Brick Tile
    • Pistol Brick Tile
    • Soldier Pistol Tile
    • Soffit Brick Tile
    • Double Height Tile
    • Triple Height Tile
  • Occam Bonding Patterns

    Bring striking bond patterns and architectural features to your design. The Occam system’s modern construction casts dynamic shadows and adds dimensional depth, creating unique visual interest on your building’s exterior. Its continuous carrier design integrates smoothly with traditional brickwork, whether installed horizontally or vertically, and overcomes the height limits often found in conventional systems.

    The Occam Brick Tile cladding system supports a range of bond patterns, including:

    • Soldier Bond
    • Projecting Stretcher Bond
    • Stack Bond
    • Fishscale Bond
    • Projecting Flemish Bond
    • Stretcher Bond

Downloads

Download the most up to date business product and technical related documentation.

Occam Brick Cladding Brochure

Occam Brochure

Download More Info
Occam H92 Cover

Occam Brick Cladding Specification

Login More Info
Occam Clay Tile PDF

Occam Brick Tile Standard Details (PDF)

Login More Info
Occam Clay Tile DWG

Occam Brick Tile Standard Details (DWG)

Login More Info
Occam Clay Tile Revit File

Occam Clay Tile Standard System Architectural Level Details (.RVT)

Login More Info
Occam IFC Cover

Occam Clay Tile Standard System Architectural Level Details (.IFC)

Login More Info
