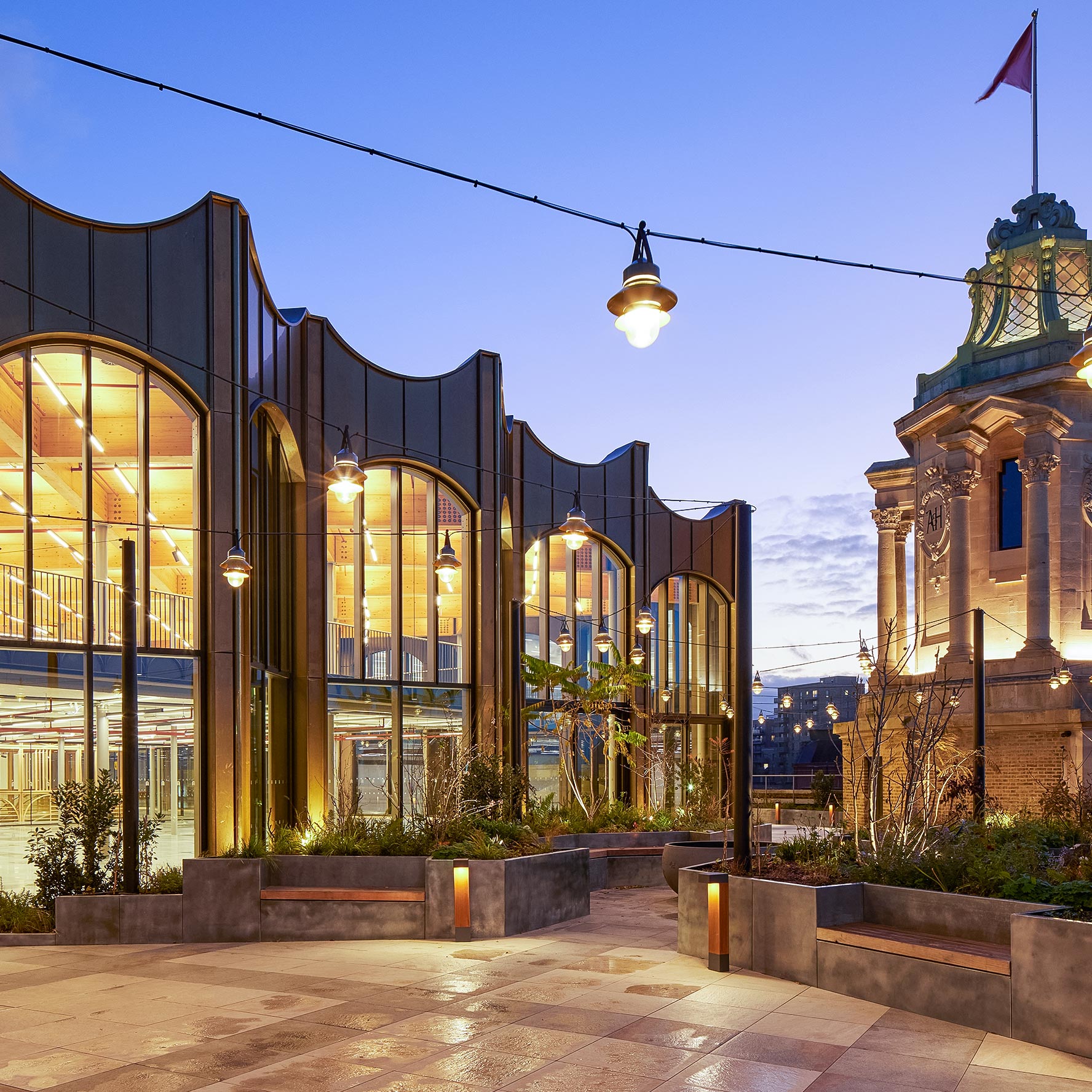

Arding & Hobbs Cladding

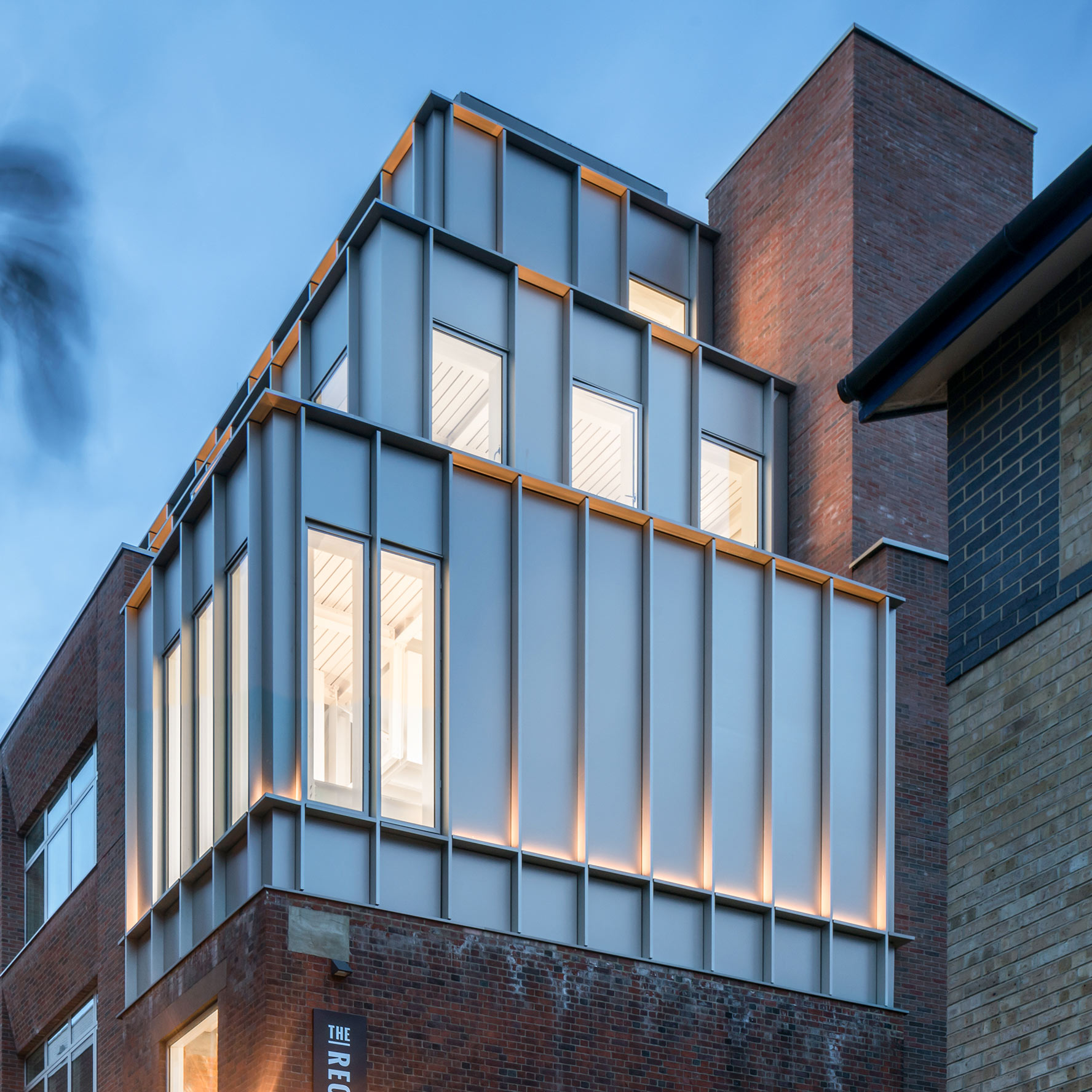

Anodised Rainscreen

Proteus HR is a honeycomb rainscreen metal cladding system that combines design flexibility with exceptional performance.

This high-performance metal cladding solution is available in a wide range of external finishes and materials. Designed for maximum versatility, it enables the creation of bold, contemporary façades using large format panels.

  • Classified in accordance with EN13501-1 achieving A2-s1, d0.
  • Fully tested & compliant with CWCT standards.
  • Panels can be individually adjusted or removed.
  • Lightweight cladding system that reduces structural load.
  • Wide range of materials & finishes available.
  • Large format panels available.
DownloadsDownloadsDownloads ContactMake an Enquiry Make an Enquiry

Delivering cutting-edge aesthetics and outstanding performance, the Proteus HR rainscreen system is built for modern architectural excellence.

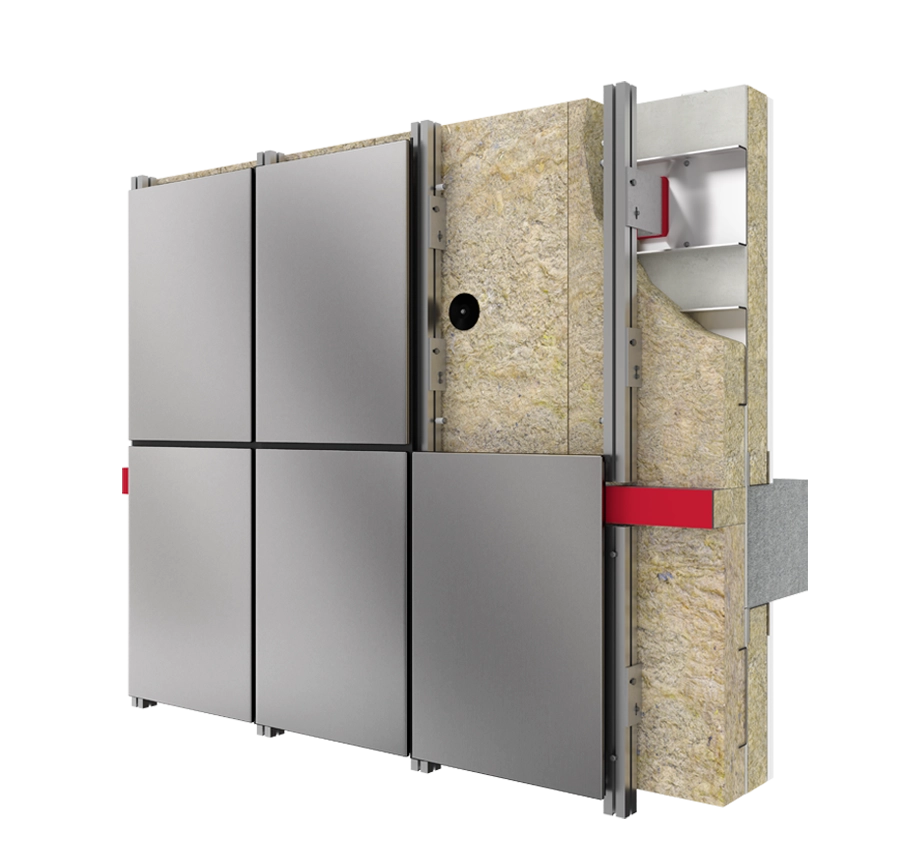

The Proteus HR system is engineered for strength, durability, and precision. It features an aluminium honeycomb core, enclosed between two thin metal sheets and framed by a perimeter extrusion. This construction allows for straightforward installation using either direct or hook fixing methods, securely attaching to the Proteus vertical carrier system.

The honeycomb structure delivers high strength while keeping the panels lightweight. This enables the use of thinner materials without sacrificing durability. The reduced weight lowers structural load, reduces material use, and improves environmental efficiency.

The System

The naturally optimised structure of Proteus HR’s honeycomb core delivers maximum compression and shear resistance using minimal material.

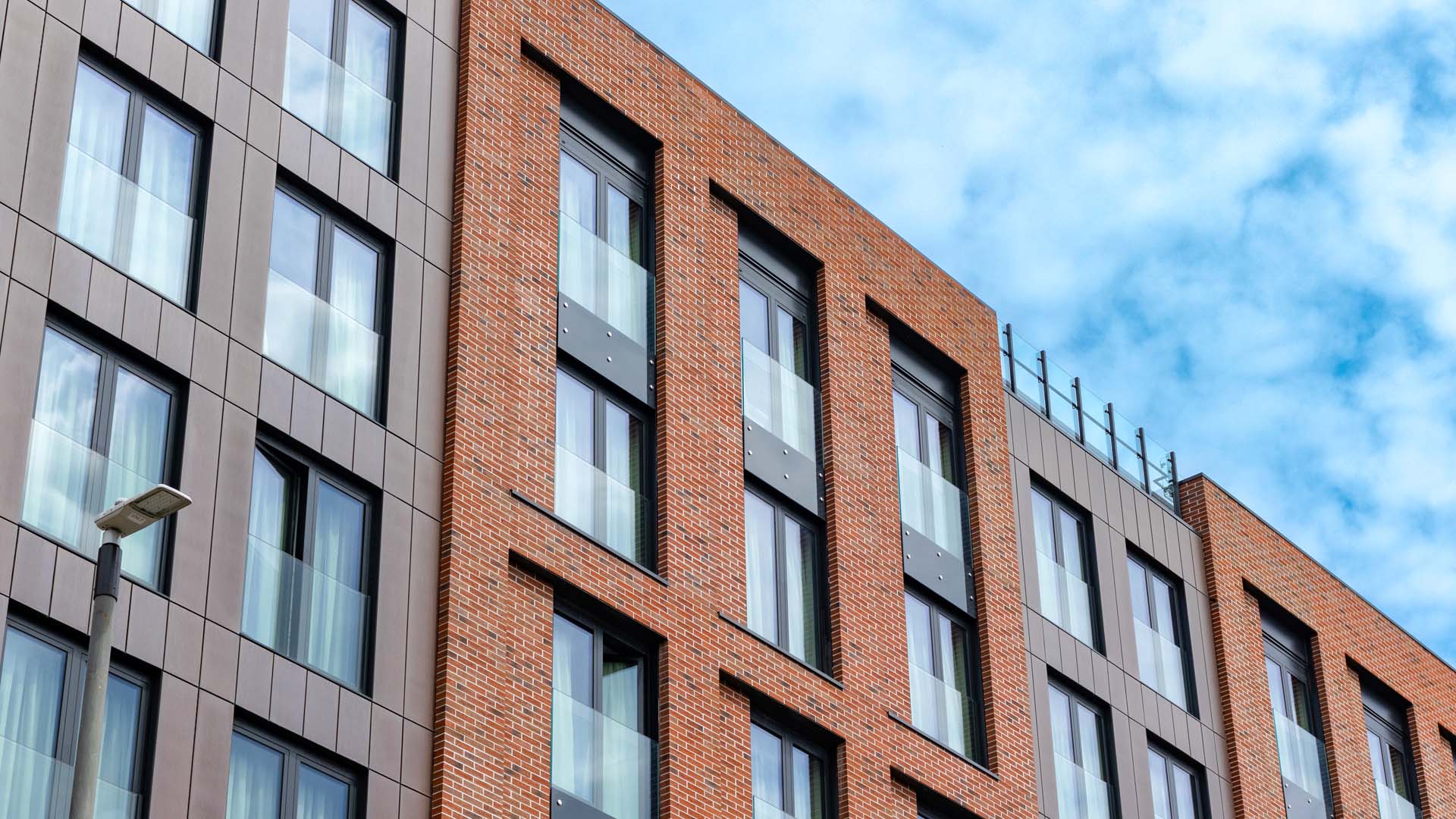

Bronze Cladding Liverpool
Metal Rainscreen Cladding

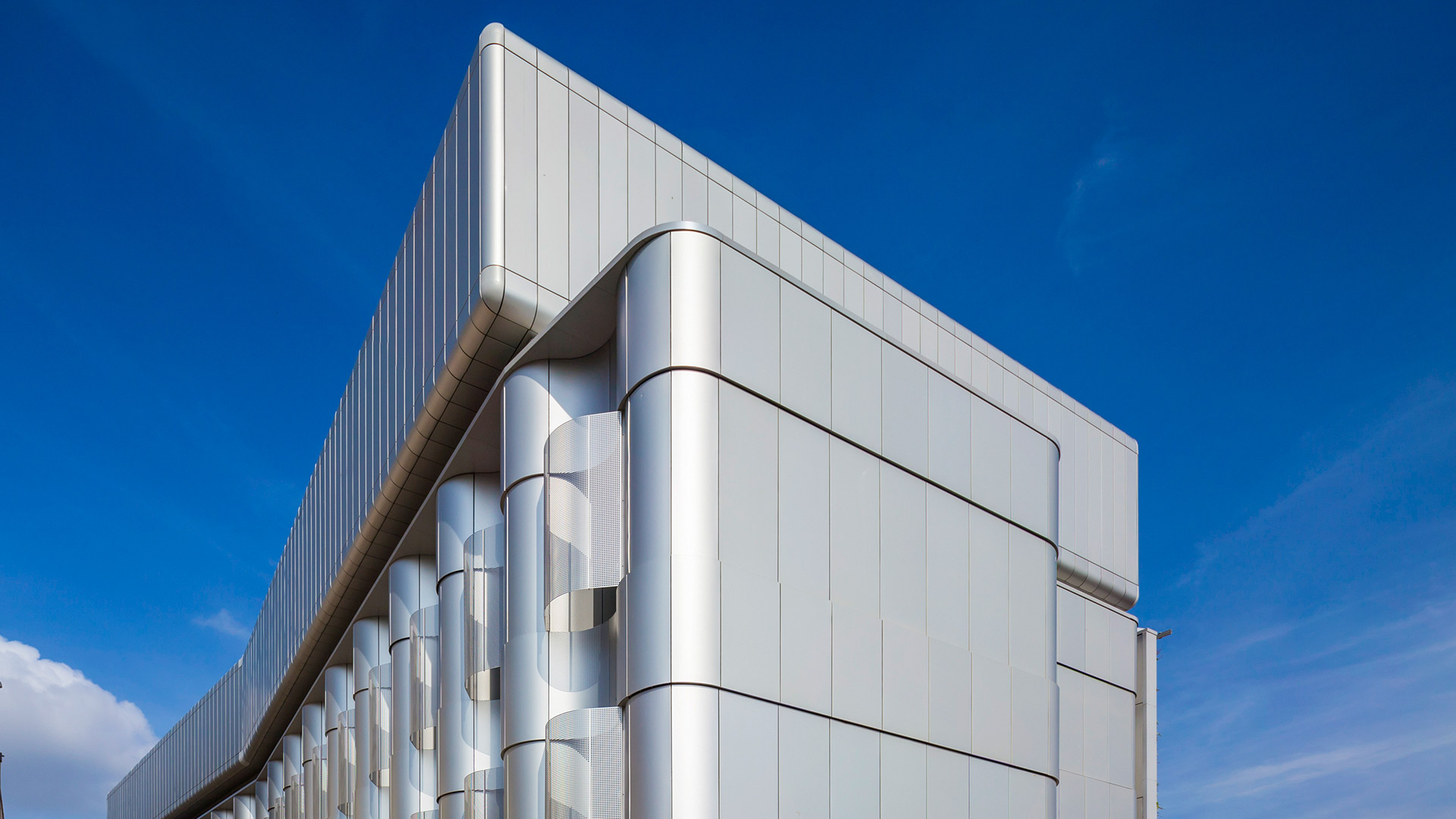

Proteus HR panels on University of Bristol

Materials & Finishes

Our Proteus HR rainscreen metal cladding system is available in a diverse range of materials and finishes, offering complete flexibility and design versatility.

Copper

Material Width: 670, 1000mm Max Panel Size: 620, 950mm

Copper’s natural weathering creates a striking patina, evolving from bright metallic tones to rich, earthy hues over time.

Bronze

Material Width: 670, 800, 1000mm Max Panel Size: 620, 750, 950mm

Bronze’s warm sheen matures into deep, lustrous tones, adding character and elegance to any façade.

Brass

Material Width: 670, 1000mm Max Panel Size: 620, 950mm

Brass develops a rich, characterful patina, transitioning from golden hues to darker, more textured finishes.

Stainless Steel

Material Width: 1250, 1500mm  Max Panel Size: 1200, 1450mm

Stainless steel offers exceptional strength and corrosion resistance, with a sleek, reflective finish ideal for modern façades.

Anodised Aluminium

Material Width: 1000, 1250, 1500, 2000mm  Max Panel Size: 950, 1200, 1450, 1790mm

Anodising enhances aluminium’s surface, delivering a durable metallic finish that reflects light and shadow beautifully.

PPC Aluminium

Material Width: 1000, 1250, 1500, 2000mm  Max Panel Size: 950, 1200, 1450, 1790mm

Aluminium’s clean, modern appearance is elevated with durable powder coatings, available in any RAL colour.

Precoated Aluminium

Material Width: 1250, 1500mm  Max Panel Size: 1200, 1450mm

Precoated aluminium provides a contemporary finish with pre-applied colours, combining durability with design flexibility.

PPC Steel

Material Width: 1250mm Max Panel Size: 1200mm

Painted steel delivers a robust, weather-resistant finish, available in a wide range of colours for long-term durability.

Precoated Steel

Material Width: 1250mm Max Panel Size: 1200mm

Precoated steel offers a distinct modern aesthetic, with advanced coating systems that ensure long-lasting performance.

Weathering Steel

Material Width: 1000, 1250, 1500mm Max Panel Size: 950, 1200, 1450mm

Weathering steel forms a protective patina over time, providing enhanced corrosion resistance and a bold, industrial look.

Filters
Black Painted Steel

Black
(LG)

Sargasso Painted Steel

Sargasso
(LG)

Terracotta Painted Steel

Terracotta
(LG)

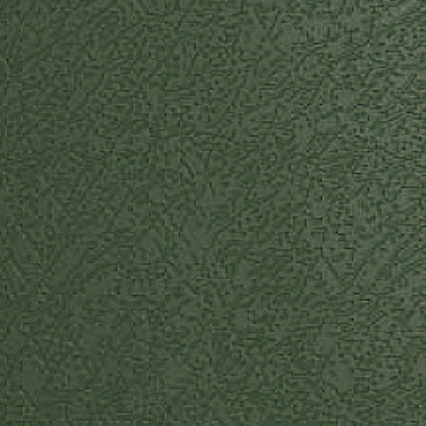

Olive Green Painted Steel

Olive Green
(LG)

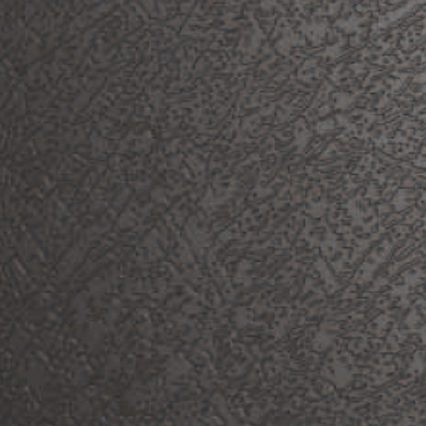

Anthracite Painted Steel

Amthracite
(LG)

Oceon Blue

Oceon Blue
(LG)

Mushroom

Mushroom
(LG)

Heritage Green

Heritage Green
(LG)

Raven

Raven
(LG)

Moorland Green

Moorland Green
(LG)

Merlin Grey

Merlin Grey
(LG)

Albatross

Albatross
(LG)

Load MoreLoad More
Project Dexter Rainscreen Cladding

Learn More

Explore the Proteus HR cladding system in detail to gain a comprehensive understanding of its design and performance.

  • EN13501-1 Testing

    Proteus HR has been fully tested to EN 13501-1 standards, ensuring compliance with fire performance regulations.

    • Copper A2-s1, d0
    • Bronze A2-s1, d0
    • Brass A2-s1, d0
    • Stainless Steel A2-s1, d0
    • Anodised Aluminium A2-s1, d0
    • PPC Aluminium A2-s1, d0
    • Precoat Aluminium A2-s1, d0
    • PPC Steel A2-s1, d0
    • Pre Coated Steel A2-s2, d0
    • Weathering Steel A2-s2, d0

    For specifications outside the current testing scope, project-specific EN 13501-1 testing can be arranged.

  • CWCT Testing

    Proteus HR has been rigorously tested by the Centre for Window and Cladding Technology (CWCT) to meet industry-leading performance standards. These certified tests replicate extreme environmental conditions, assessing air permeability, water penetration, wind resistance, and impact. This ensures the product’s reliability and durability in demanding applications.

  • CEF Durham

    Proteus HR panel widths vary by material. Refer to the table below for maximum widths by type.

    • Copper 950mm
    • Bronze 950mm
    • Brass 950mm
    • Stainless Steel 1450mm
    • PPC Aluminium 1790mm
    • Precoated Aluminium 1790mm
    • Anodised Aluminium 1790mm
    • PPC Steel 1200mm
    • Precoated Steel 1200mm
    • Weathering Steel 1450mm

    For panel sizes that exceed our standard maximums, please contact our team to discuss bespoke solutions.

  • Cladding Installation

    Get installation right with hands-on training at our UK Learning Zone, where contractors can build confidence and sharpen their practical skills. In addition to in-person sessions, we provide clear, easy-to-follow installation videos and technical guides, ensuring support is always available, whether you’re on site or planning ahead.

    To request installation guides or book a training session, please contact us.

    Learn MoreLearn More
  • NBS Source

    Proteus HR is listed on NBS Source, streamlining specification for architects, contractors, and consultants. With access to comprehensive product data, BIM files, and specification clauses, the system is ready for seamless integration into detailed design packages. This supports a smooth transition from concept to construction, ensuring accurate specification and compliance at every project stage.

    Learn MoreLearn More

Downloads

Download the latest product, technical, and business documentation to support your project from start to finish.

Proteus HR Brochure Cover

Proteus HR Brochure

Download More Info

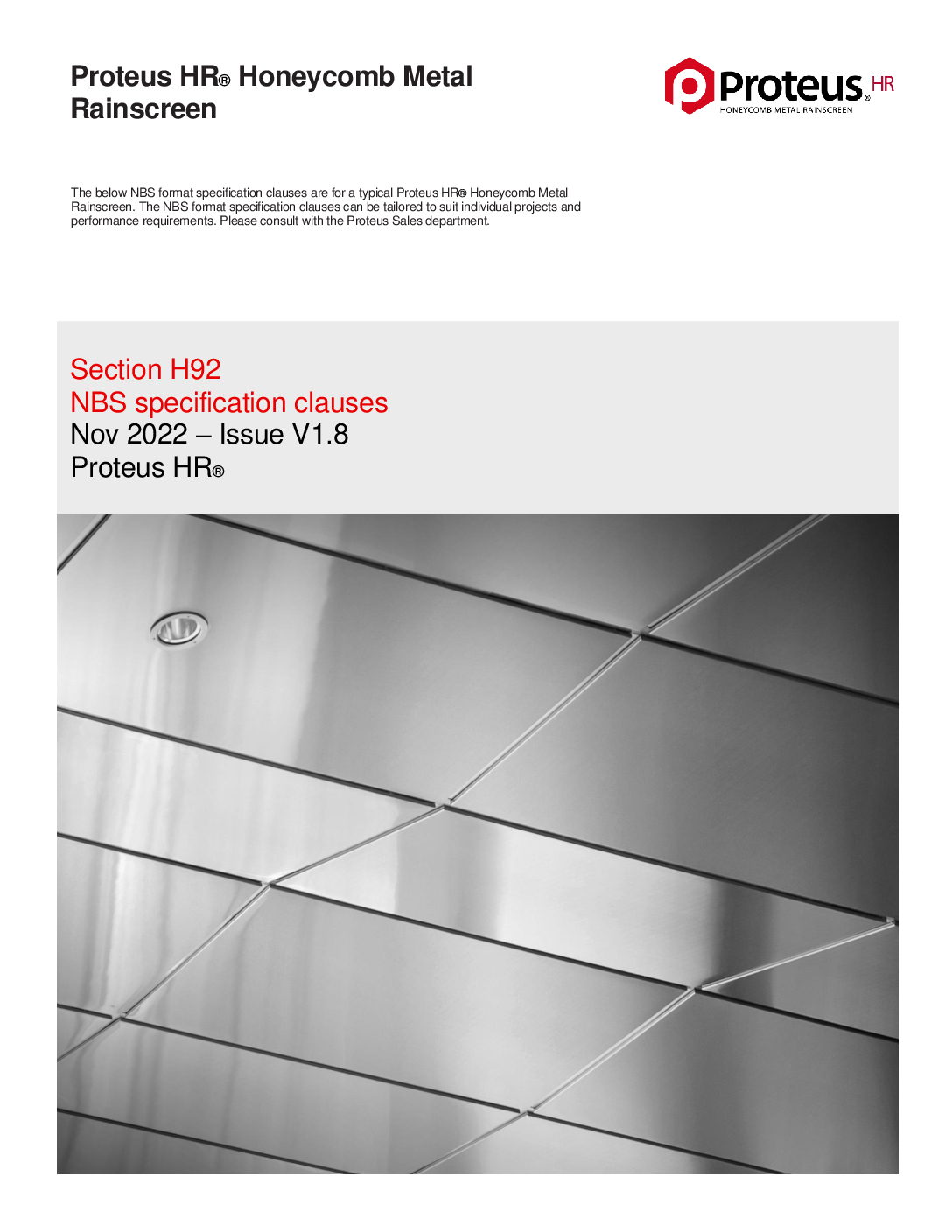

HR Specification Cover

Proteus HR Specification

Login More Info
Proteus HR PDF Cover

Proteus HR System Standard Details (PDF)

Login More Info
Proteus HR DWG Cover

Proteus HR Standard System Details (DWG)

Login More Info
Proteus HR Revit file cover

Proteus HR Standard System Architectural Level Details (.RVT)

Login More Info
Proteus HR IFC Cover

Proteus HR Standard System Architectural Level Details (.IFC)

Login More Info
Case StudiesSee AllSee All
Proteus HR Copper Panels

Arding & Hobbs

Case Study
Sawston Uni Campus

Sawston Unity Campus

Case Study
Metal Rainscreen Cladding

NTU Clinical Skills

Case Study
aluminium wall cladding

Lords Cricket Ground

Case Study
Anodised Aluminium Cladding System

Hatton Square

Case Study
Proteus HR London Underground

Whitechapel Station

Case Study

Accreditation

Our accreditations reflect our commitment to quality, safety, and the highest industry standards.

45001 Cover

ISO 45001:2018

Download More Info
ISO 14001

ISO 14001:2015

Download More Info

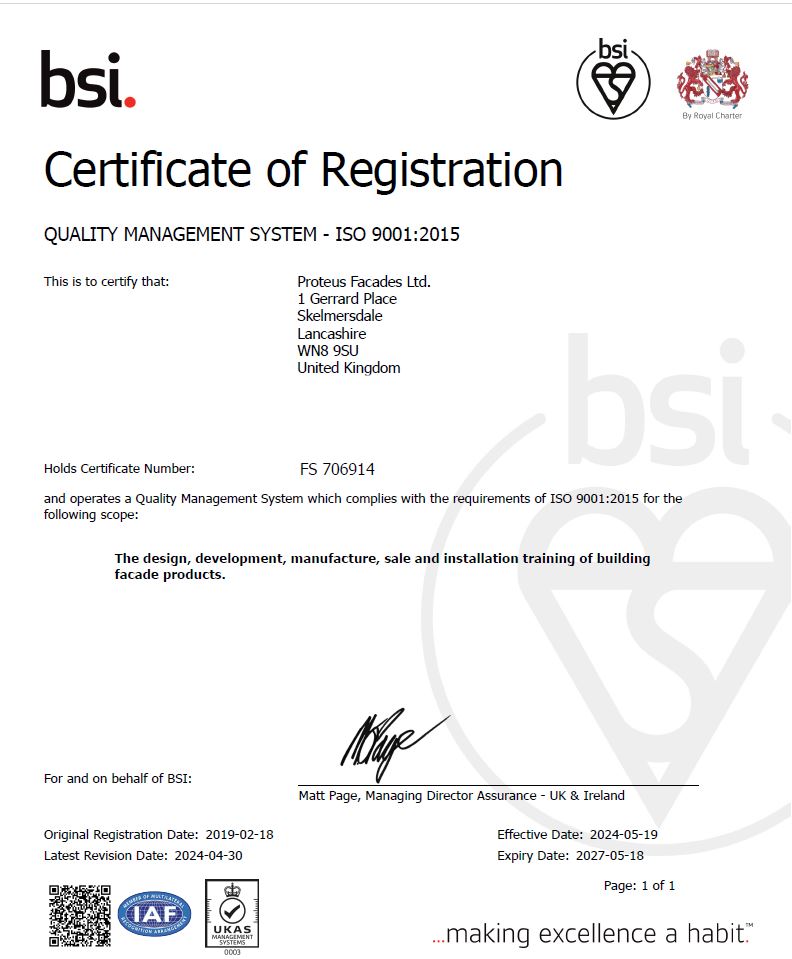

BSI Certification
